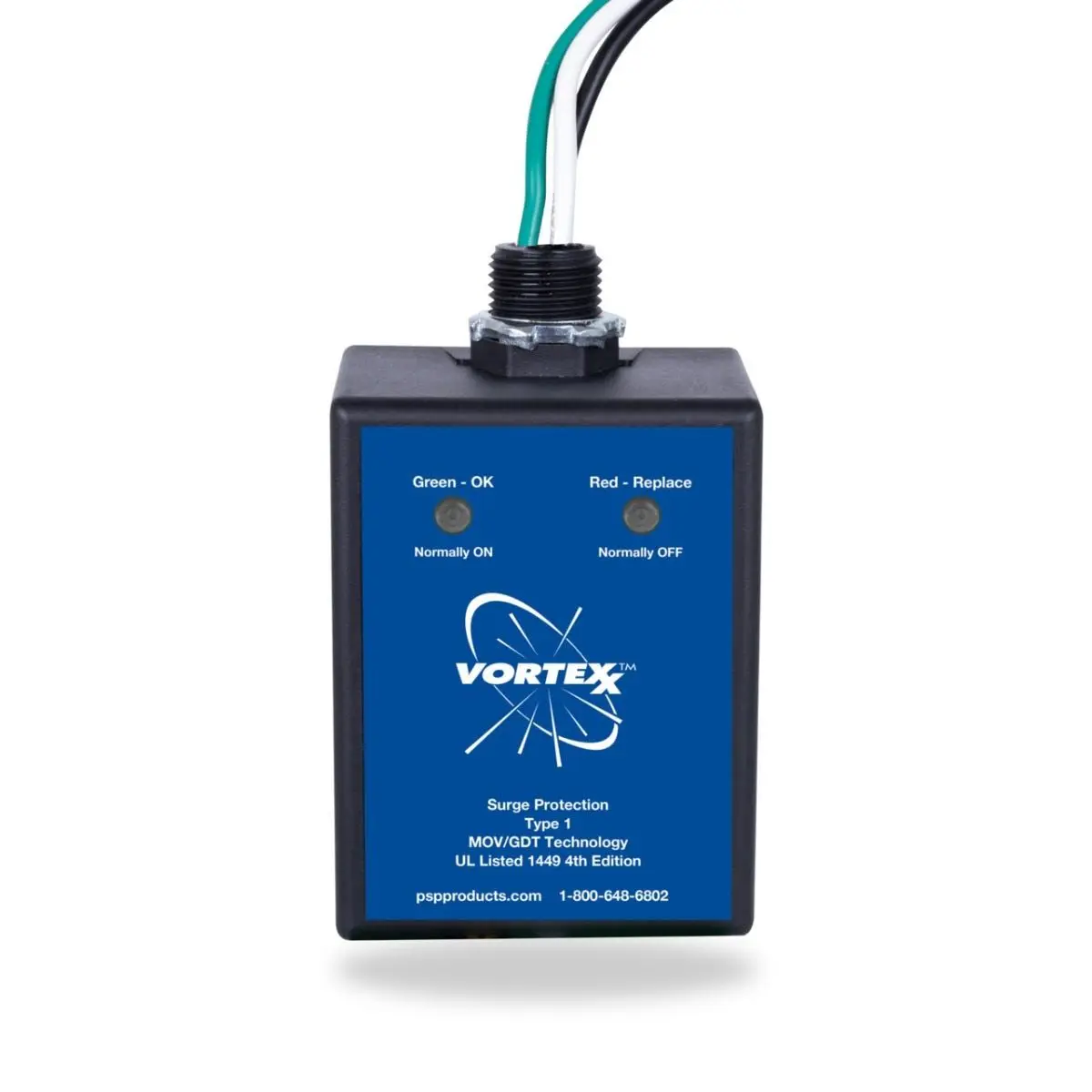

PSP SURGE PROTECTIVE DEVICE 120/240 VAC Split Phase - Imax:60kA per phase - SCCR:200kA Type 1 Listed UL listed to Canadian Safety Standard

Surge Protective Device

CA$243.00

Panel and equipment surge protector ideal for main panel, subpanel and point of use applications up to 200kAIC fault current rating.

Features

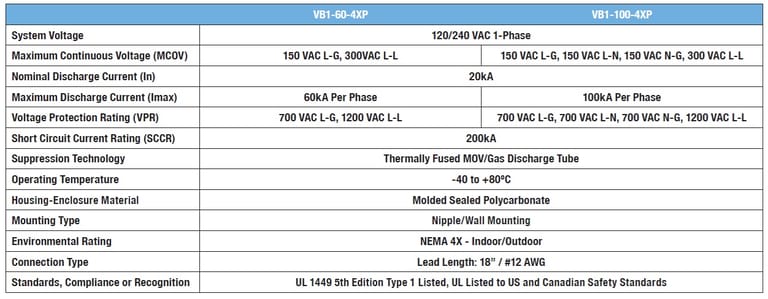

  •  Imax: 60kA per phase

  • In: 20kA

  • Thermally fused metal oxide varistor (TFMOV) suppression with gas discharge tube (GDT)

  • Real-time per phase LED indicators and audible alarm

  • Designed to allow installation inside of electrical box

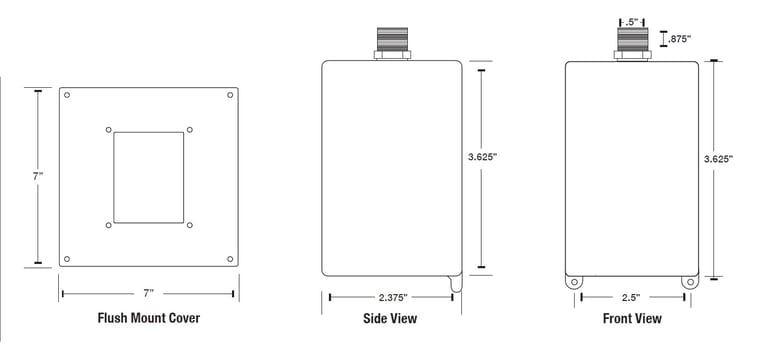

  • Flush mount option

  • NEMA 4X (IP66) indoor/outdoor rated enclosure

  • Lifetime warranty

Additional Options

  • Flush mount cover - Item# VB-FMC

IMPORTANT: FLAT BLADE TERMINALS MUST BE INSTALLED UNDER MAIN CONDUCTOR AND NOT

BETWEEN THE CONDUCTOR AND LUG SCREW TERMINAL TO CONFORM TO PROPER INSTALLATION

STANDARDS. USE ONLY THE TERMINALS SUPPLIED, IF TERMINALS ARE DAMAGED OR MISSING CONTACT

PSP PRODUCTS FOR REPLACEMENTS.

Installation Instructions

1. Confirm device is rated for your system by comparing voltage measurements to the line voltage on the product label.

2. Turn off all power supplying this equipment before working on or inside the equipment.

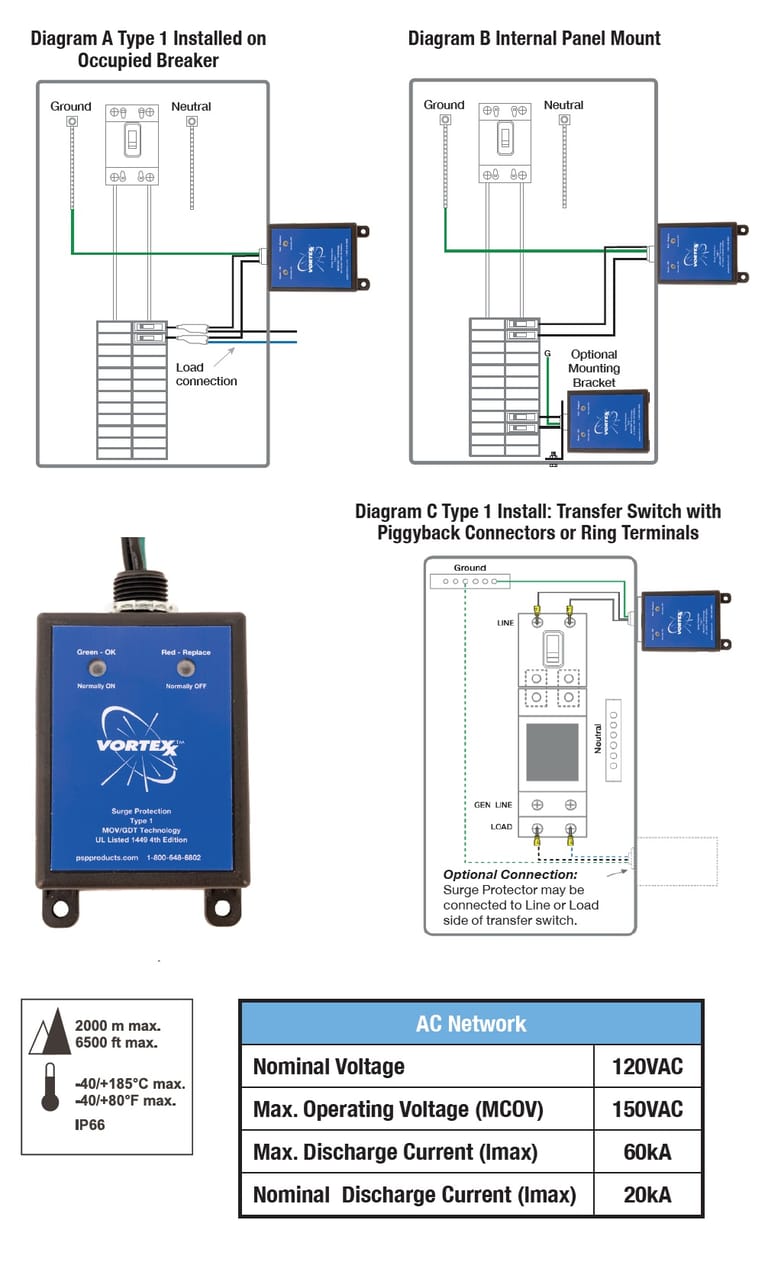

3. See installation diagrams below and match to your specific installation type.

4. If installing on a breaker, use a 20A-60A breaker and verify lug on breaker provides solid connection to SPD wiring.

5. In some jurisdictions, provided flat tabs can be used in the bottom of the lug.

6. As a Type 1, no breaker is required.

7. Install in accordance with all pertinent articles of the National Electric Code.

8. Confirm that the electrical terminals used to attach this device are identified for these conductors.

9. Keep conductor length as short as possible with no sharp bends.

10. Do not loop or coil wires.

11. Ensure a high quality ground is in place.

12. Turn on all power supplying this equipment.

13. Verify diagnostic indicator is illuminated and no audible alarm is present.

14. Install cover and/or close door on equipment fixture.

Diagnostic Operation

• Left LED ON and Right LED OFF = Normal operation

• Left LED OFF or Right LED or Audible Alarm ON = Fault, check phase,

check voltage & connections.

• If OK, replace unit
