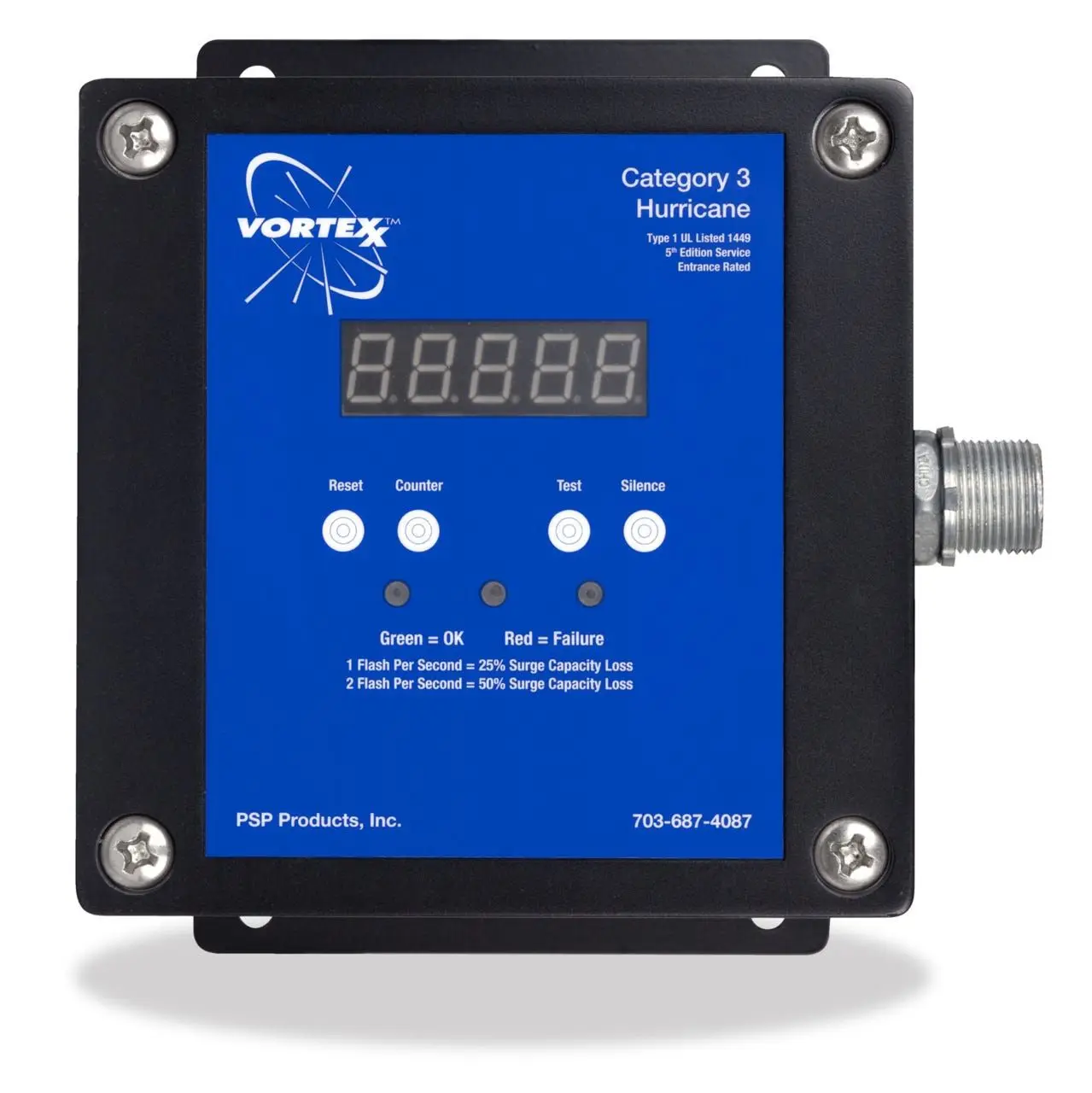

PSP SURGE PROTECTIVE DEVICE 1 or 3 Phase (3W+G/ 4W+G) - Imax:240kA per phase - SCCR:200kA - SMART DIAGNOSTIC - Type 1 Listed UL listed to Canadian Safety Standard
Surge Protective Device
CA$3009.00
Panel surge protector built to combine exceptional performance with outstanding value. This multi- stage hybrid design provides “best-In-class” performance. Available for all single and three- phase configurations up to 600VAC.

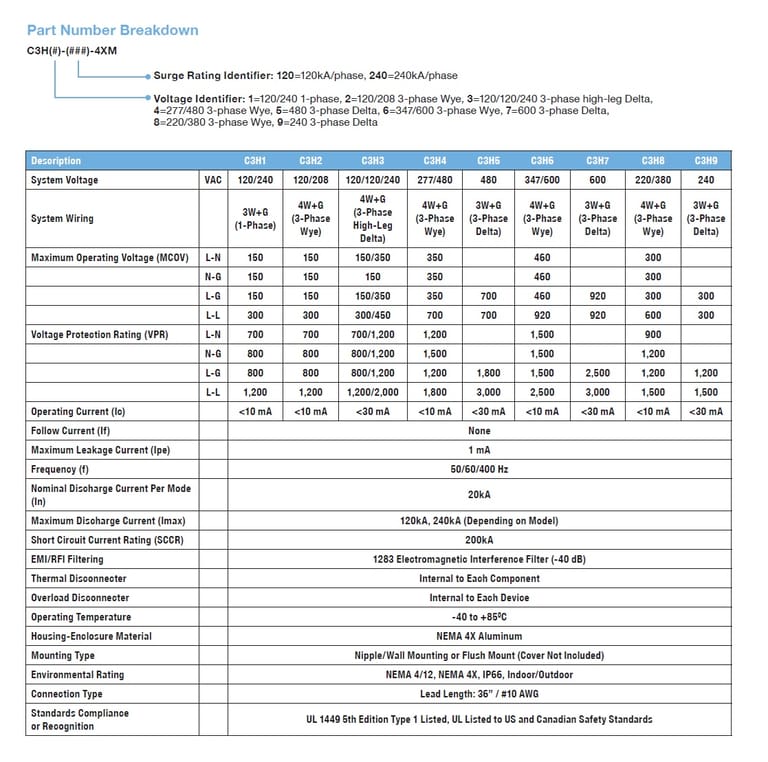

Features
Imax: 240kA per phase
In: 20kA
Thermally fused metal oxide varistor (TFMOV) suppression with gas discharge tube (GDT)
Real-time per phase LED indicators, audible alarm, remote contacts and surge counter are standard
Smart diagnostic, indicating remaining surge capacity
Remote diagnostic version (RDU) allows for the diagnostic readout to be located in a convenient, viewable location, regardless of the installation point of the surge protection device.
Sine wave tracking
EMI/RFI noise filtration
NEMA 4X (IP66) indoor/outdoor rated enclosure
25 year warranty
Additional Options

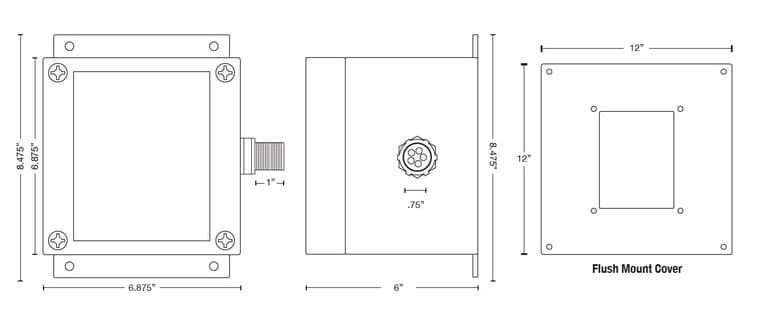

Flush mount cover (6” wall depth required) - Item# C3-FMC
Installation Instructions
1. Preparation for Install of Surge Protection Device (SPD)
A. Verify the system voltage and wiring configuration is the same as the enclosed SPD by metering the panel voltage and checking it against the product label located on the SPD
B. Review the installation area to ensure the proper space is available to properly mount and install the SPD. The enclosure should be mounted no more than 3 feet away from the distribution panel.
C. Check that the building’s facility grounding system meets all NEC & CEC requirements as well as local codes. A low resistance ground system is essential to the proper functioning of any SPD. The soil resistance level should be no more than 25 Ohms (less than 5 Ohms is ideal). This can be verified by performing a soil resistivity test.
2. Location of Surge Protection Device (SPD) For service entrance applications or for feeder/subpanel applications, install the SPD directly adjacent to swtichgear, panel board or disconnect.
3. Wiring of Surge Protection Device (SPD)
A. TURN OFF the power to the distribution panel where the SPD will be installed.
Optional: Install a circuit breaker to feed the SPD. This will allow safety personnel to remove power from
the device in order to diagnose or service the unit. In addition, the device incorporates internal fusing, UL &
CSA approved, that will protect against short circuit fault conditions within the unit.
B. Nipple mount SPD, or install either a rigid or flexible metal conduit between the SPD and the distribution panel.

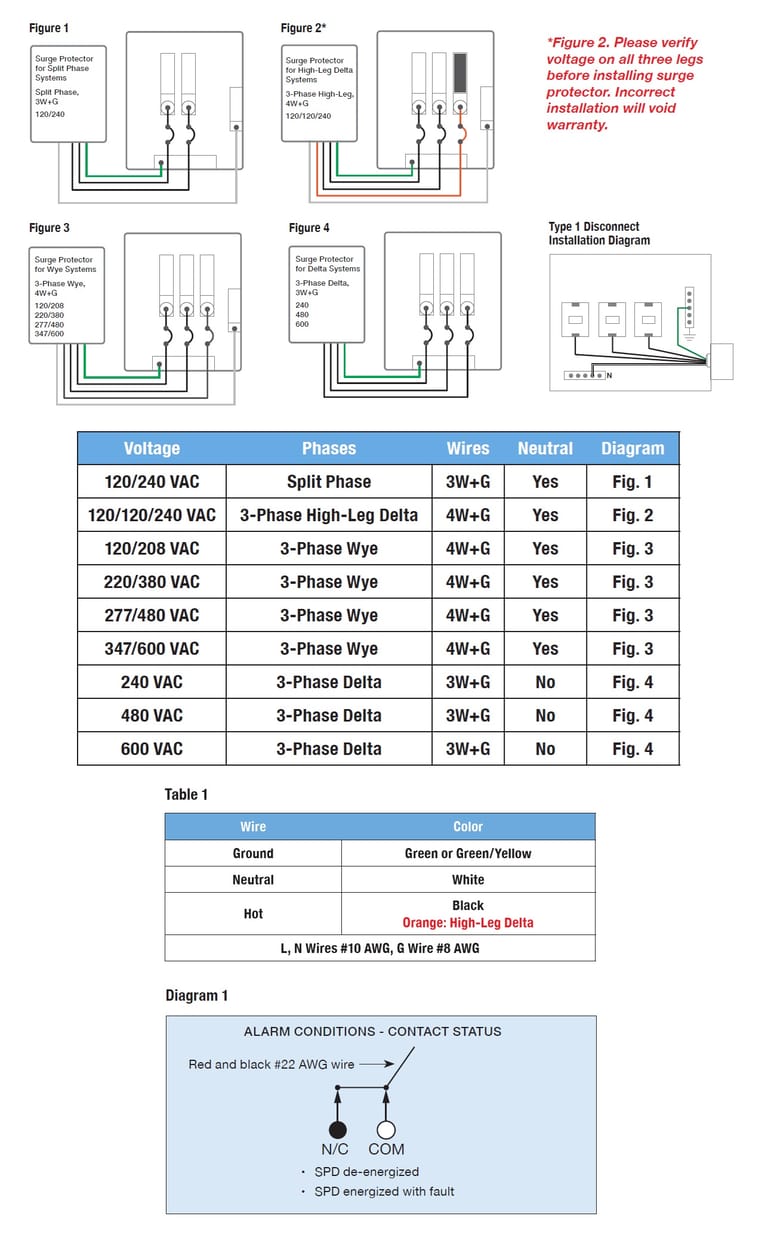

C. Run wires of SPD to distribution panelboard - See wiring diagrams for details.
D. Ensure proper color codes: Table 1.
E. Tighten and recheck all connections.
F. If remote monitoring is employed, connect the form “C” contacts to the building monitor system or independent alarm, i.e. addressable relay. Contact relays will accept up to 1A/220 VAC. The dry contact
terminals are N/O (normally open), N/C (normally closed) and COM (common). Diagram 1. NOTES: Check wiring before applying power.
4. Buttons
A. Reset: Resets the surge counter to zero.
B. Counter: Displays number of surge events.
C. Test: Simulates a fault by lighting up LEDs and playing the audible alarm.
D. Silence: Silences audible alarm when a fault has occurred.
