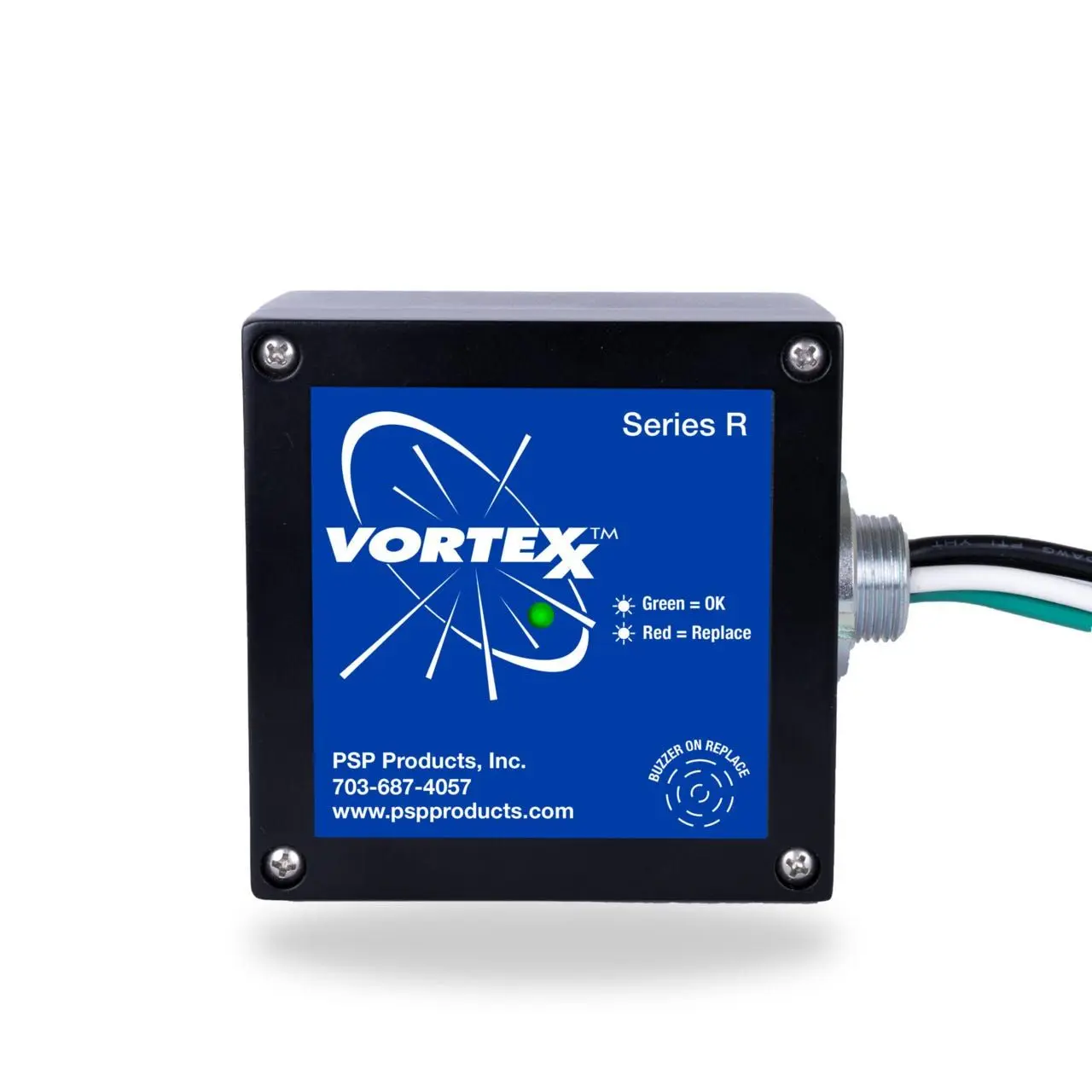

PSP SURGE PROTECTIVE DEVICE 3 Phase Wye (4W+G) - Imax:120kA per phase - SCCR:200kA - Type 1 Listed UL listed to Canadian Safety Standard
Surge Protective Device
CA$618.00
Panel and equipment surge protector ideal for main panel, subpanel and point of use applications up to 200kAIC fault current rating.
Features
Imax: 120kA per phase
In: 20kA
Thermally fused metal oxide varistor (TFMOV) suppression with gas discharge tube (GDT)
EMI/RFI noise filtration (-40db)
Repositionable lid allows for label orientation
Meets UL 96A lightning protection master label
NEMA 4X (IP65/IP66) indoor/outdoor rated enclosure

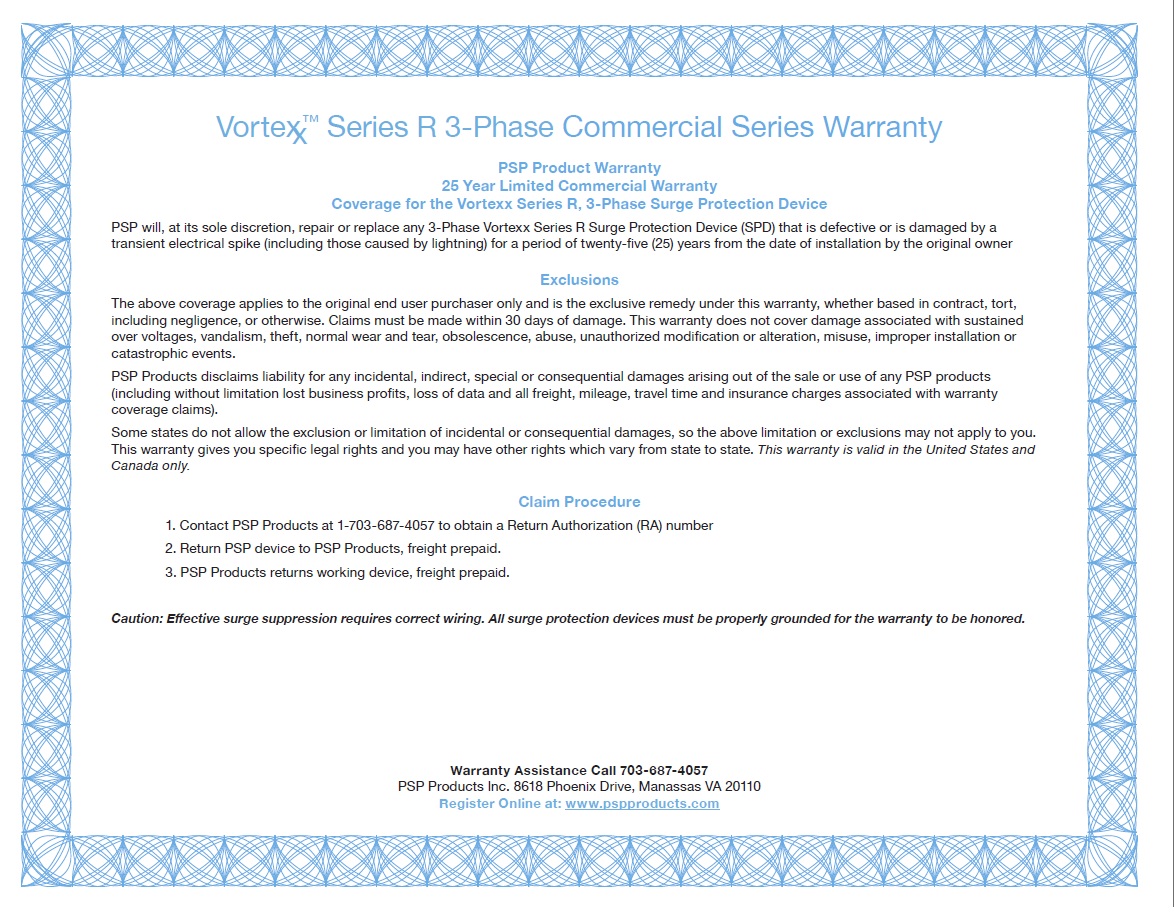

Lifetime warranty: single-phase
Available with Series R or Generator label
Additional Options

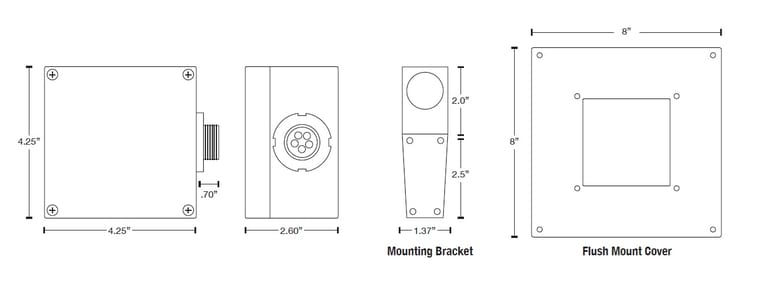

Mounting bracket to allow installation inside of electrical panel ? Item# VR-LB
Flush mount cover ? Item# VR-FMC
Installation Instructions
1. Confirm VR device is rated for your system by comparing voltage measurements to the line voltage on the product label.
2. Turn off all power supplying this equipment before working on or inside the equipment.

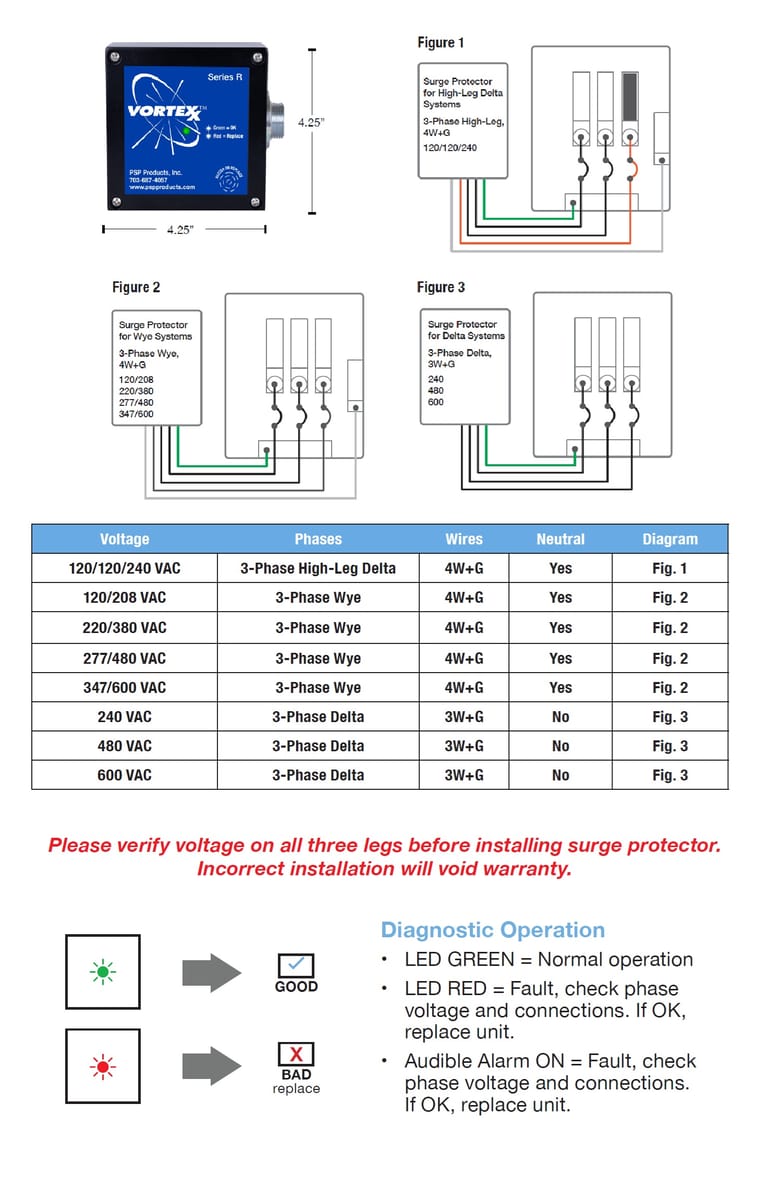

3. See installation diagrams below and match to your specific installation type.
4. Install on 20A-60A breaker. Verify lugs on breaker provide solid connection to SPD wiring.
5. Install in accordance with all pertinent articles of the National Electric Code.
6. Confirm that the electrical terminals used to attach this device are identified for these conductors.
7. Keep conductor length as short as possible with no sharp bends.
8. Do not loop or coil wires.
9. Ensure a high quality ground is in place.
10. Turn on all power supplying this equipment.
11. Verify diagnostic indicator is illuminated and no audible alarm is present.
12. Install cover and/or close door on equipment fixture. Installation Notes

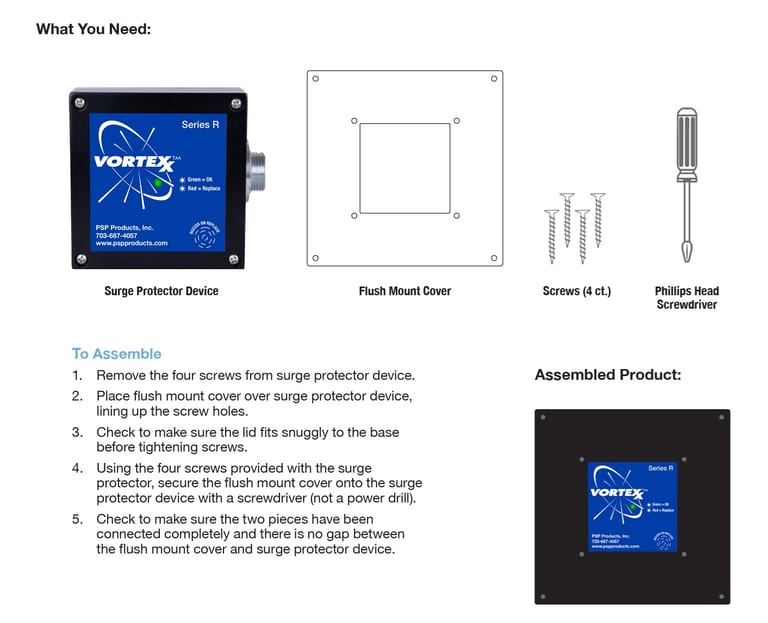

• Designed to allow installation inside of a finished wall using optional flush
mount cover (Part #VR-FMC).
