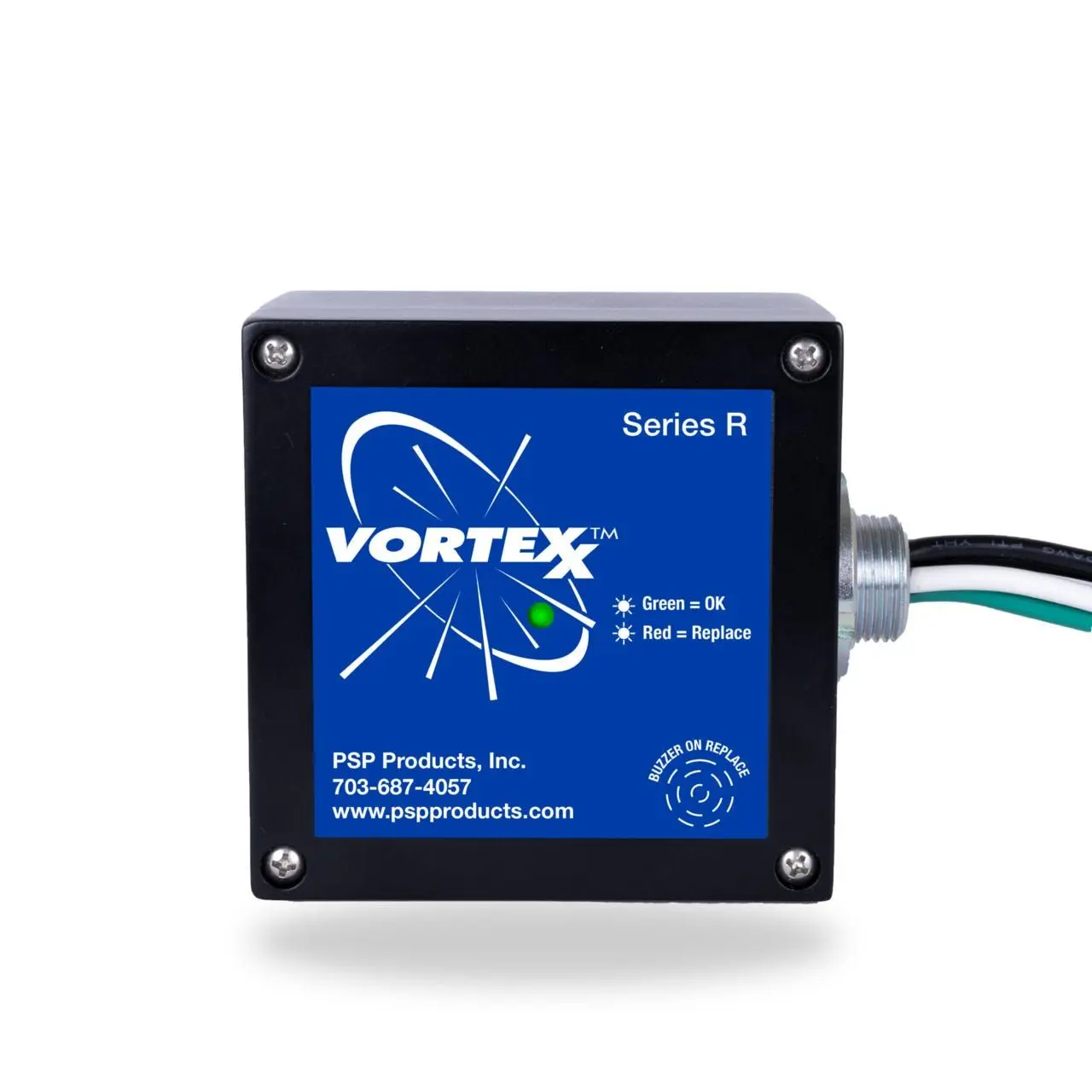

PSP SURGE PROTECTIVE DEVICE 120/240 VAC Split Phase - Imax:120kA per phase - SCCR:200kA -Type 1 Listed UL listed to Canadian Safety Standard

Surge Protective Device

CA$462.00

Panel and equipment surge protector ideal for main panel, subpanel and point of use applications up to 200kAIC fault current rating.


Features

  • Imax: 120kA per phase

  • In: 20kA

  • Thermally fused metal oxide varistor (TFMOV) suppression with gas discharge tube (GDT)

  • EMI/RFI noise filtration (-40db)

  • Repositionable lid allows for label orientation

  • Meets UL 96A lightning protection master label

  • NEMA 4X (IP65/IP66) indoor/outdoor rated enclosure

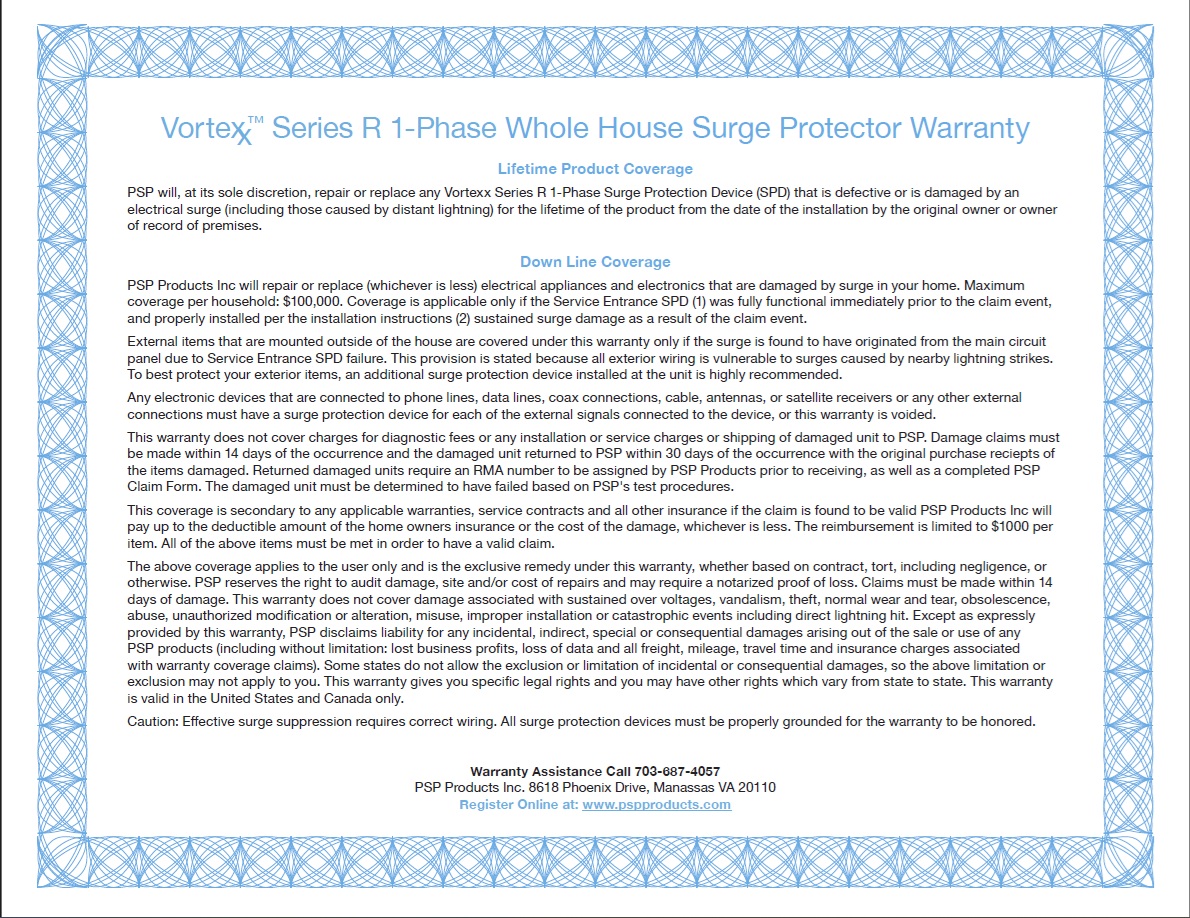

  • Lifetime warranty: single-phase

  • Available with Series R or Generator label


Additional Options

  • Mounting bracket to allow installation inside of electrical panel ? Item# VR-LB

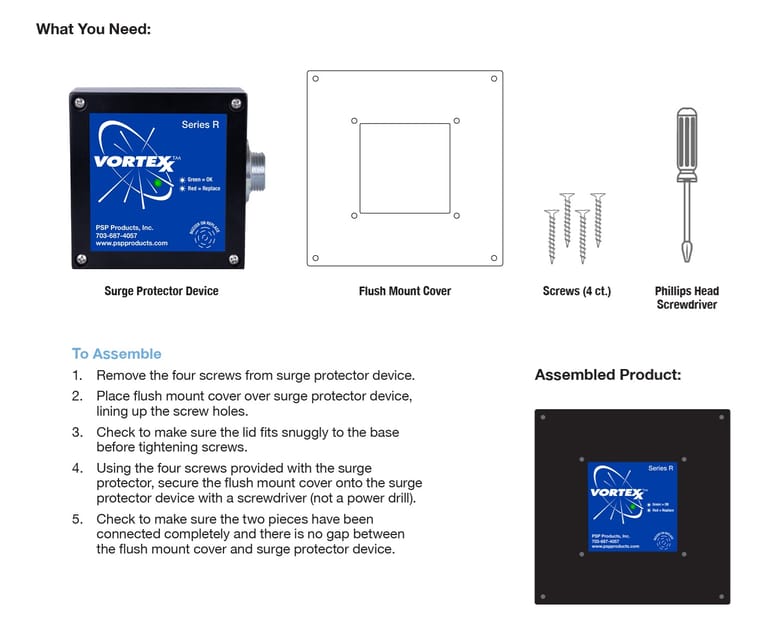

  • Flush mount cover ? Item# VR-FMC

IMPORTANT: FLAT BLADE TERMINALS MUST BE INSTALLED UNDER MAIN CONDUCTOR AND NOT

BETWEEN THE CONDUCTOR AND LUG SCREW TERMINAL TO CONFORM TO PROPER INSTALLATION

STANDARDS. USE ONLY THE TERMINALS SUPPLIED, IF TERMINALS ARE DAMAGED OR MISSING

CONTACT PSP PRODUCTS INC. FOR REPLACEMENTS.

INSTALLATION INSTRUCTIONS

1. Confirm VR device is rated for your system by comparing voltage measurements to the line voltage on the product label.

2. Turn off all power supplying this equipment before working on or inside the equipment.

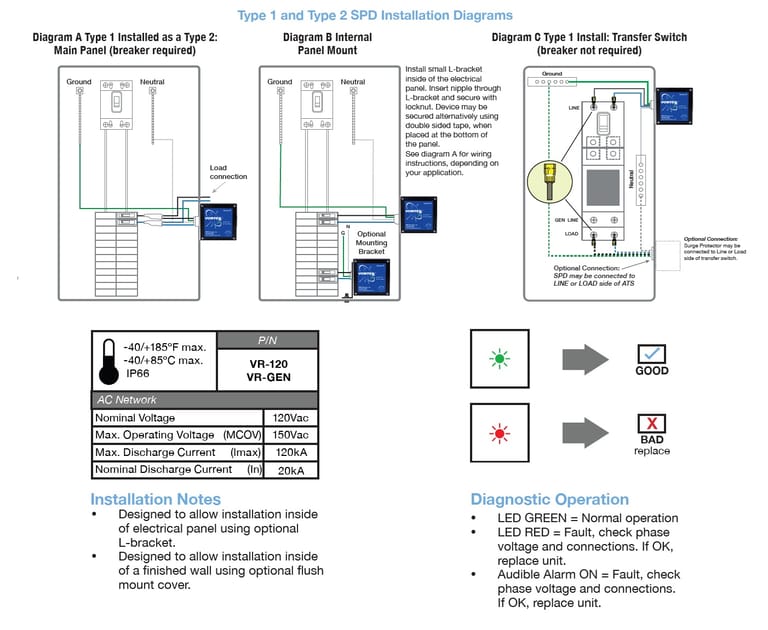

3. See installation diagrams below and match to your specific installation type.

4. When installing as a Type 2, use a 20A-60A breaker. Verify lug on breaker provides solid connection to SPD wiring.

5. As a Type 1, no breaker is required.

6. Install in accordance with all pertinent articles of the National Electric Code.

7. Confirm that the electrical terminals used to attach this device are identified for these conductors.

8. Keep conductor length as short as possible with no sharp bends.

9. Do not loop or coil wires.

10. Ensure a high quality ground is in place.

11. Turn on all power supplying this equipment.

12. Verify diagnostic indicator is illuminated and no audible alarm is present.

13. Install cover and/or close door on

equipment fixture.
